Description

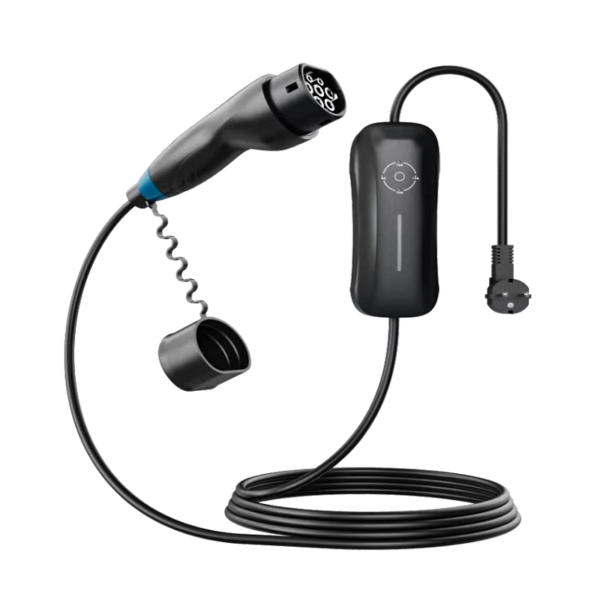

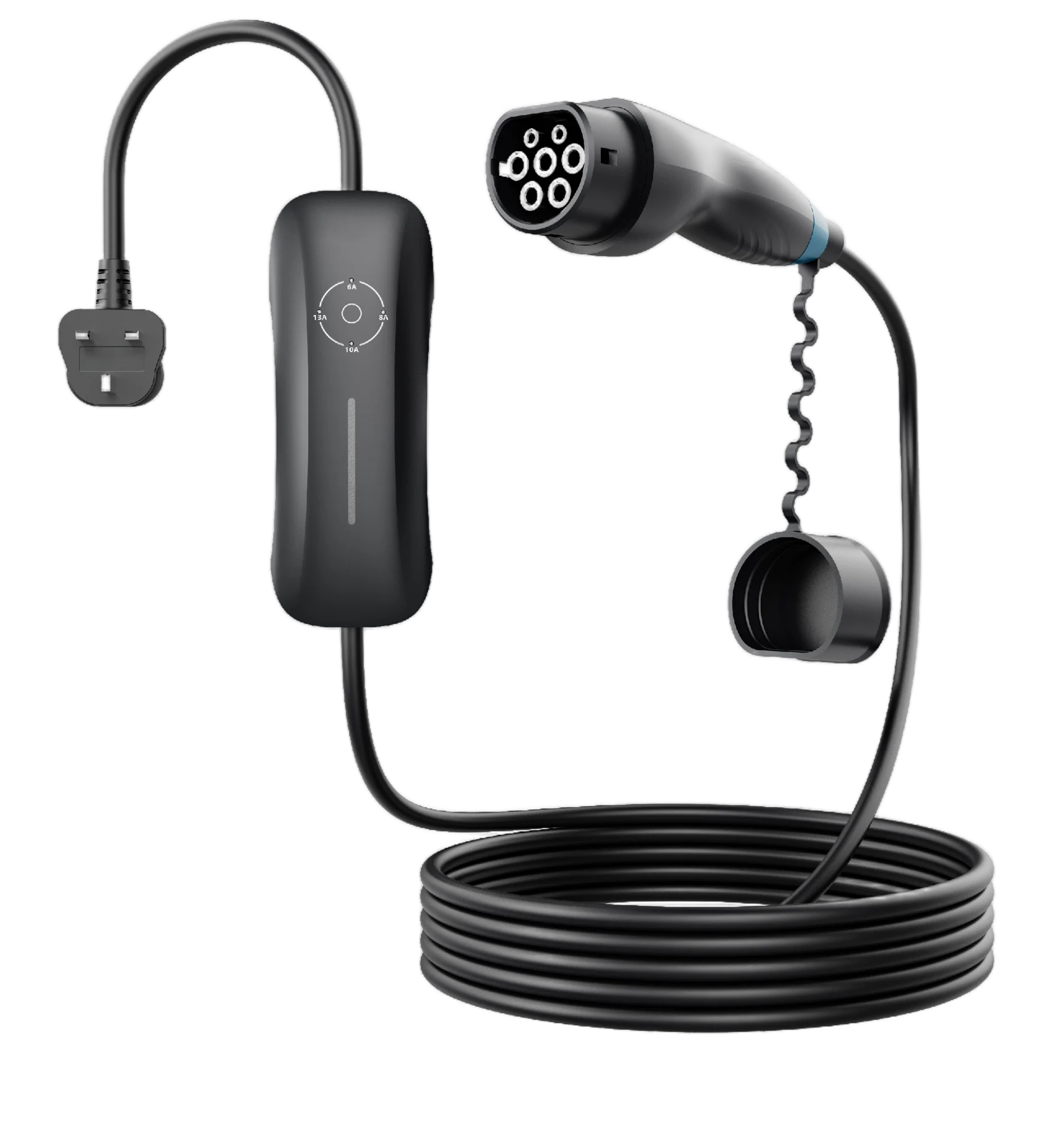

| Item | Portable AC EV Charger |
| Product model | EVB05 |
| Rated Curent | 6A/8A/10A/16A； 6A/8A/10A/13A； 8A/10A/13A/16A |
| Operation Voltage | AC 110V-240 V |
| Rate Frequenc | 50 /60Hz |
| Leakage Protection | Type A RCD |
| Withstanionoltage | 2000V |
| Contact Resistance | 0.5 mΩ Max |
| Shell Material | PC Material |
| Flame Retardant Grade | UL94 V-0 |
| Operating Temperature | -30°C~+50°C |
| Storage Temperature | -40°C~+85°C |
| Enclosure Rating | IP65 |
| EV Control Box Size | L:192.2mm “W:72.2mm’H:53.8mm |
| Function240 Vilable | Plug Lighting +Current Switching |
| Standard | IEC 62752，IEC 61851 |
| Warranty | 1 Year |
| Certification | CE |
| Protection | Leakage Current Protection, Over Current Protection, Over Voltage Protection, Under Voltage Protection, Over Temperature Protection, Low Temperature Protection, Short Circuit Protection, Surge Protection, and Overload Protection with Automatic Recovery. |
