Short Description

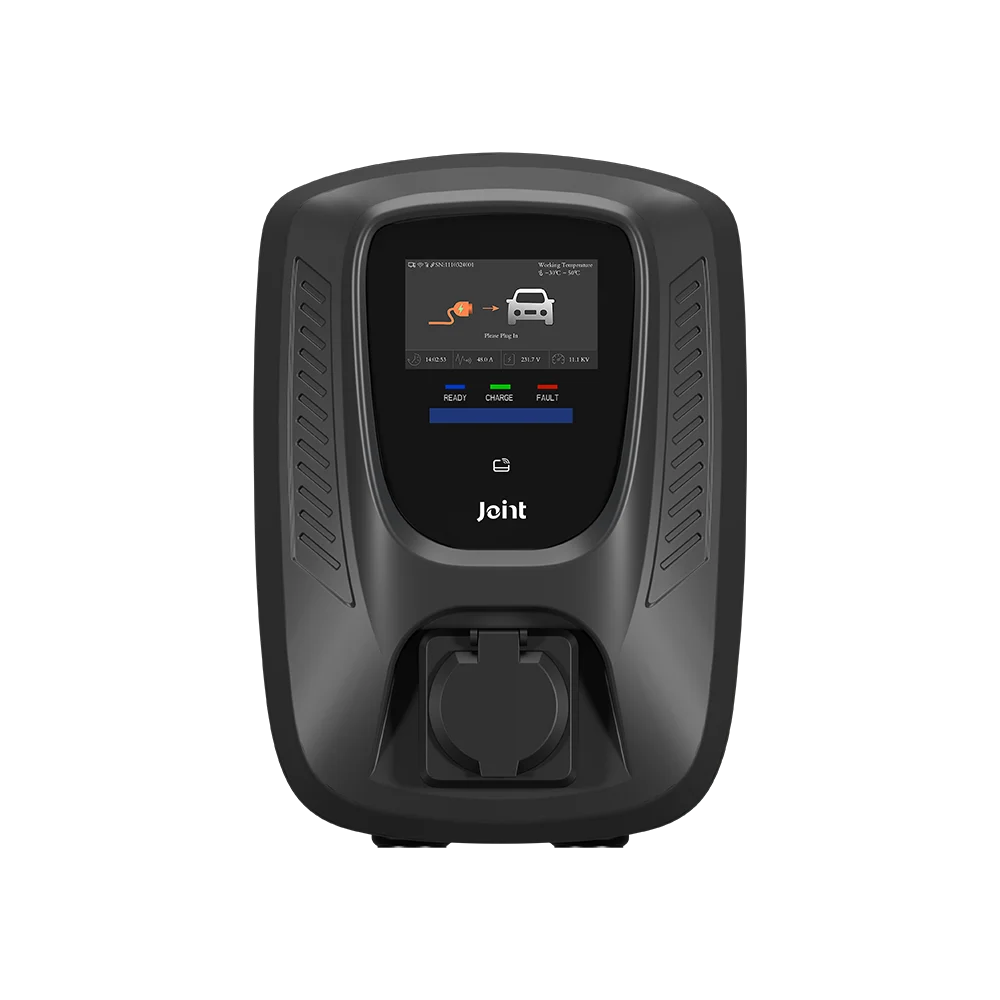

EVC 10 is a basic, full-featured wall-mounted/floor-mounted charger with LCD screen showing detailed charging status, suitable for both commercial and home use. The European version of the EV charger EV charging solution is available in 3 power levels (single phase 7KW, three phase 11KW/22KW) with IEC 62196-2 type 2 plug or socket. It has 9 protection measures such as OVP, UVP, OCP, etc.
It is compatible with charging standards. OCPP1.6J allows users to control your station from an easy-to-use dashboard, quickly onboard users and set charging prices. It is available in multiple configurations: plug and charge, RFID swipe card, LAN/WIFI/4G.
Sample: Support
Customization: Support
Certificate: CE
Input Voltage: 230Vac±10%(1-phase) or 400Vac±10%(3-phase)
Output Rating: 7KW , 11KW , 22KW
Charging Interface: IEC 62196-2 , Type2 Plug or Socket
Connectivity: OCPP 1.6 JSON (OCPP 2.0 compatible)
Network: LAN standard, 4G or Wi-Fi optional
User Authentication: RFID (ISO14443)
Cable Length: 5m (7m charging cable optional)
LCD Display: 4.3” screen
Charging Control: Plug&Charge
More than 20000 units were sold and well-proven reliability in the market.
4.3 inch screen for charging operation.
3 years warranty for low maintanance cost.
| Color | Black, Silver |
|---|---|
| Size | Medium, Small |
