CT, which means a current transformer, is the equipment used to measure current. It minors electric current flow by sensing a magnetic field around the electric current carrier; you don’t need to directly touch the cable or electric circuit. The CT- clamp is usually made up of an iron core and windings that measure accurately the amount of current that passes through the cable, which plays an important role in EV Chargers.
The action of CT-clamp in EV chargers
CT-clamp real-monitors the electric strength of EV chargers and helps the charging system to ensure the stabilization of charging power. It is important for the electric current of the dynamic adjustment charging process, especially in commercial use scenes, which makes sure of the efficiency and stability of the charging process.
1. The safety protection function
CT-camp can detect electrical abnormalities, such as overload and short circuit. When the electric current is over the safety limit, the charging station immediately cuts off the electricity to prevent electricity breakdown.
2. Support energy metering and charging
In commercial charging locations, the CT clamp can accurately record the amount of electricity used in the charging process and ensure that the user’s charge is accurate. Thus, it provides necessary data support for CPOs（charge pcoint operators）, helping them manage and optimize the operation of charging stations.
3. Smart charging management
With smart charging technology developed, CT-Clamp is not only used for electric metering but also works with other smart equipment, achieving load management and battery health monitoring.
The Advantages of CT-clamp
1. non-contact metering
The CT clamp’s non-contact feature allows it to be installed without changing the electrical system, decreasing installation complexity and improving safety when used.
2. High precision and reliability
CT-clamp provides high-accuracy electrical data, ensuring accurate metering of electrical energy consumed. Its high precision makes it an ideal tool for charging stations in meters and settlements.
3. Easy to install and maintain
Due to the CT-clamp design simply, no need to change the electrical system, and it can be installed quickly in the charging system. Additionally, the maintenance of the CT clamp is very convenient, reducing operation costs.

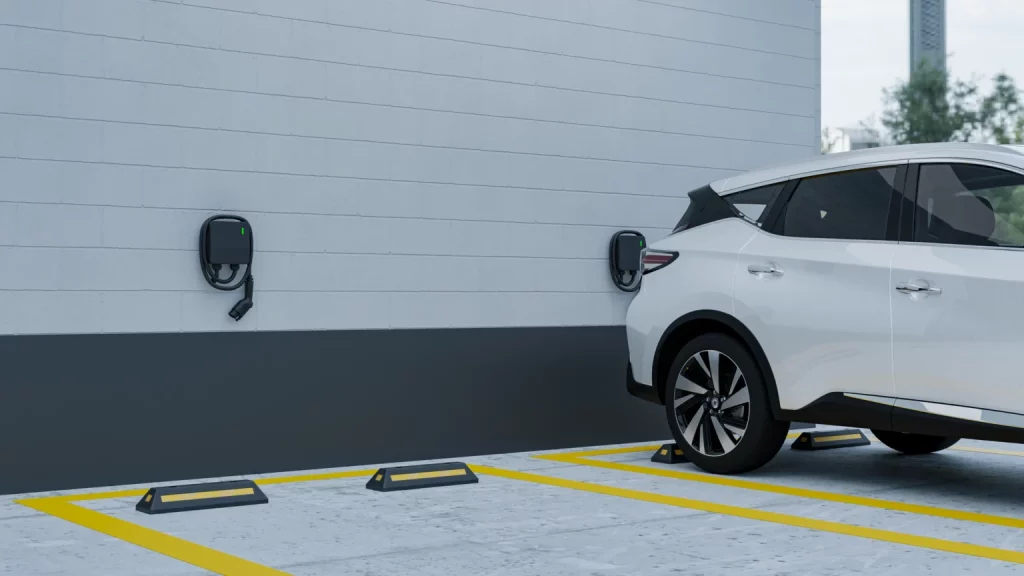

EVL001 Home EV Charger by Joint Tech
Conclusion
CT-clamps, which have a wide range of applications in EV chargers, improve safety and precision in the charging process and promote smart charging station management.
With electric cars expanding, CT clamps’ effect becomes increasingly important and is an indispensable core part of the charging system.
