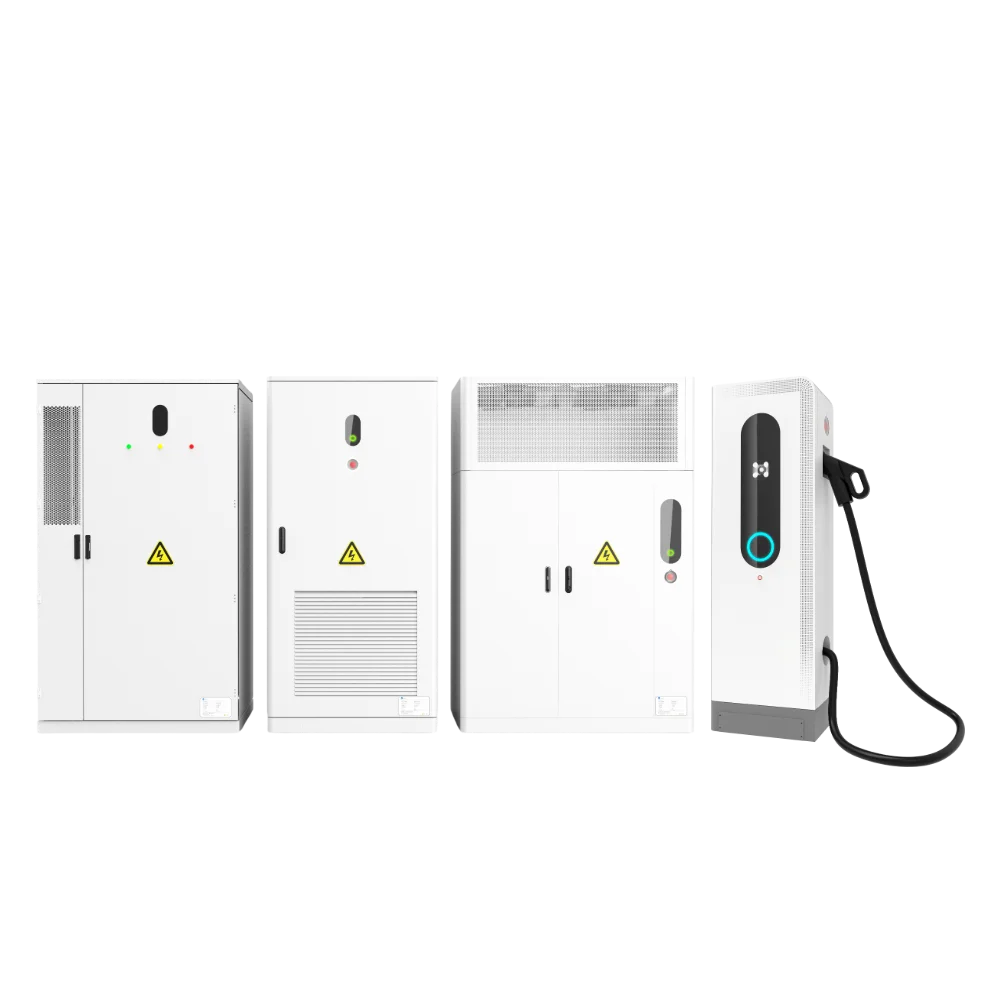

ESCS-D Centralized Charging Management System

Short Description

The ESCS-D is an ultra-fast EV charger with a power output of up to 180 kW, delivering powerful charging from 120 kW to 180 kW. This enables rapid energy refill for EVs in just minutes, making it ideal for high-turnover locations.

With dual-gun output and smart power allocation, it can charge two EVs simultaneously, with intelligent dynamic load balancing to optimise efficiency and reduce waiting time.

The ESCS-D offers multiple charging modes: auto, time-based and energy-based, and it can SOC-based, to meet commercial, fleet and public use cases.

For industrial safety, it comes with comprehensive electrical protection (OCP, OVP, UVP, SCP, RPP and OTP), and is IP55- and IK10-rated for durability and safety in all environments.



Sample:                                               Support

AC Input Voltage:                             400Vac-15%,+10%

Output Voltage:                                 200~1000Vdc

AC Input Power:                               125kw

Power Output / Single Channel:    90-180KW

Operating Temperature:                  -20°C~55°C

Communication:                               CAN / Ethernet

Rated Power:                                     45kW / 90kW

Capacity:                                            233kWh



Description

KEY FEATURES AND BENEFITS

  • Extended Lifespan: The liquid-cooled unit ensures over 10 years of reliable service.

  • Battery Testing: Advanced battery testing technology enhances EV battery safety.

  • Dynamic Power Distribution: Smart power allocation enhances charging efficiency and increases revenue.
  • High Conversion Efficiency: DC bus architecture significantly improves overall energy conversion efficiency,
    reaching up to 92%.
